TL;DR:
- Proper ductwork design in paint booths ensures consistent airflow, pressure balance, and top finishes. It depends on correct layout, sizing, routing, and adherence to standards to prevent energy waste and contamination. Regular inspection and monitoring help maintain performance and improve overall paint quality.
Ductwork design in paint booths is defined as the engineering of air supply and exhaust pathways that control airflow velocity, direction, and pressure throughout the spray environment. The role of ductwork design in paint booths extends far beyond moving air from one point to another. It determines whether your booth achieves the 80–120 air changes per hour required to clear overspray and solvent vapor efficiently. Poor duct layout forces fans to work harder, wastes energy, and introduces the turbulence that ruins finishes. Facility managers and engineers who treat ductwork as a secondary concern pay for that decision in rework, energy bills, and compliance failures.
How do different airflow designs affect ductwork requirements?
The three standard airflow configurations in industrial paint booths are crossdraft, downdraft, and side-draft. Each pattern dictates a fundamentally different duct layout, and choosing the wrong one for your application creates problems that no amount of fan power can fix.
Crossdraft booths draw air horizontally from an inlet plenum at one end and exhaust through filters at the opposite end. The ductwork is relatively simple, but the horizontal airflow path means overspray travels across the vehicle or part before reaching the exhaust. Duct sizing must account for the full booth width to maintain consistent face velocity.
Downdraft booths supply conditioned air through a ceiling plenum and exhaust through floor grates into an underfloor duct system. This configuration produces the cleanest finish because gravity and airflow work together to carry overspray away from the work surface. The ductwork is more complex and expensive, requiring a full ceiling distribution system and a below-grade exhaust plenum, but the finish quality justifies the investment in production environments.
Side-draft booths supply air through one sidewall and exhaust through the opposite wall or through floor-level exhaust ducts. This layout suits facilities where below-grade construction is not feasible.
- Crossdraft: simple duct runs, lower installation cost, higher contamination risk at the spray zone
- Downdraft: complex ceiling and floor ductwork, highest finish quality, best suited for automotive refinishing
- Side-draft: moderate complexity, good for retrofit installations, requires careful duct sizing to avoid dead zones
Pro Tip: When specifying duct locations for a downdraft booth, confirm that the floor exhaust plenum depth allows for filter access without disrupting the grating system. Inadequate plenum depth is one of the most common and costly oversights in booth construction.

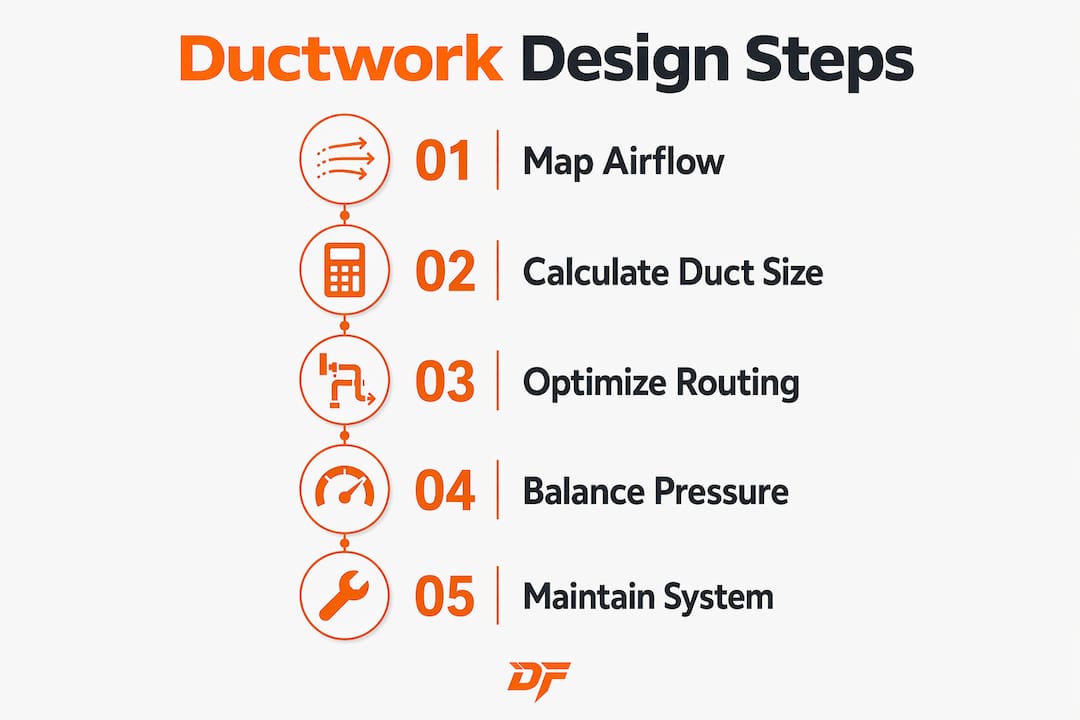

The optimal ductwork layout for any booth type starts with mapping the intended airflow path before a single duct is sized or ordered.
What key factors influence efficient paint booth ductwork?
Efficient paint booth ductwork depends on four engineering variables: duct sizing, static pressure, routing geometry, and adherence to published standards. Getting any one of these wrong degrades the entire system.
Duct sizing starts with total system static pressure, not booth volume. Sizing based on total static pressure, including filter resistance and duct friction, prevents the most common performance failure: a fan that moves adequate air in a clean system but stalls as filters load. Engineers who size fans against clean-filter conditions discover this problem at the worst possible time, during a production run.
Routing geometry matters more than most facility managers realize. Each 90-degree elbow adds resistance equivalent to 10–20 feet of straight pipe. A duct run with four elbows effectively adds 40–80 feet of equivalent length to the system. That resistance increases fan load and reduces delivered airflow at the booth face.
Following SMACNA and ASHRAE standards keeps duct design within proven performance parameters. The key guidelines include:
- Rectangular duct aspect ratios must stay below 4:1 to maintain laminar flow and minimize friction losses
- Smooth transitions between duct sizes prevent turbulence at expansion and contraction points
- Duct velocity should stay within the range appropriate for the application to avoid noise and pressure loss
- All fittings must be accounted for in equivalent length calculations, not estimated or ignored
Poor ductwork design forces air handling motors to work up to 20% harder and produces energy losses of 15–25%. That penalty compounds over years of operation and shows up directly in utility costs.
Pro Tip: Use a duct design calculation sheet that includes equivalent length for every fitting before finalizing fan selection. Nominal fan ratings never reflect actual delivered airflow once ductwork resistance is factored in.
Heat sources inside the booth also affect duct performance. Overhead lighting can disrupt laminar flow by creating localized convection currents. Ductwork layout must account for lighting placement to prevent those currents from deflecting overspray back toward the work surface.
How does ductwork design affect paint quality and air safety?
The connection between duct design and finish quality is direct. A well-designed duct system maintains consistent airflow velocity across the entire spray zone. Inconsistent velocity creates dead zones where overspray settles on surfaces instead of being carried to the exhaust filters.
Pressure balance is the most critical variable. Industry standards recommend maintaining 5–10% positive pressure by ensuring supply airflow exceeds exhaust. Positive pressure prevents unfiltered shop air from infiltrating the booth through door gaps and penetrations. Negative pressure, caused by undersized supply ducts or oversized exhaust ducts, pulls contaminated air into the spray zone and directly onto wet paint.
Filter loading changes the pressure balance over time. As filters accumulate overspray, static pressure rises and fan performance drops. Duct design must accommodate dirty-filter conditions, not just the clean-startup state. A system that performs correctly on day one but drifts into negative pressure by week three has a design flaw, not a maintenance problem.
The sequence of failures from poor duct design follows a predictable pattern:
- Undersized or poorly routed ducts restrict exhaust airflow
- Static pressure rises as filters load, reducing fan output
- Booth pressure drops from positive to neutral or negative
- Unfiltered air infiltrates through door seals and wall gaps
- Dust and particulate contamination reach the wet paint surface
- Finish defects increase, rework costs rise, and throughput falls
Ductwork design is not just an airflow problem. It is a contamination control problem. Every design decision that affects pressure balance, velocity distribution, or filter loading has a direct consequence on the cleanliness of the air touching your paint surface.
Makeup air management connects directly to duct design. Supply ducts that deliver conditioned makeup air must be sized and positioned to replace exhausted air without creating drafts or cold spots. Cold air entering a downdraft booth through an undersized supply plenum drops the air temperature near the ceiling, which affects paint atomization and cure time.
What are best practices for maintaining ductwork performance?
Ductwork performance degrades gradually. The degradation is rarely dramatic enough to trigger an immediate response, which is why proactive monitoring matters more than reactive repair.

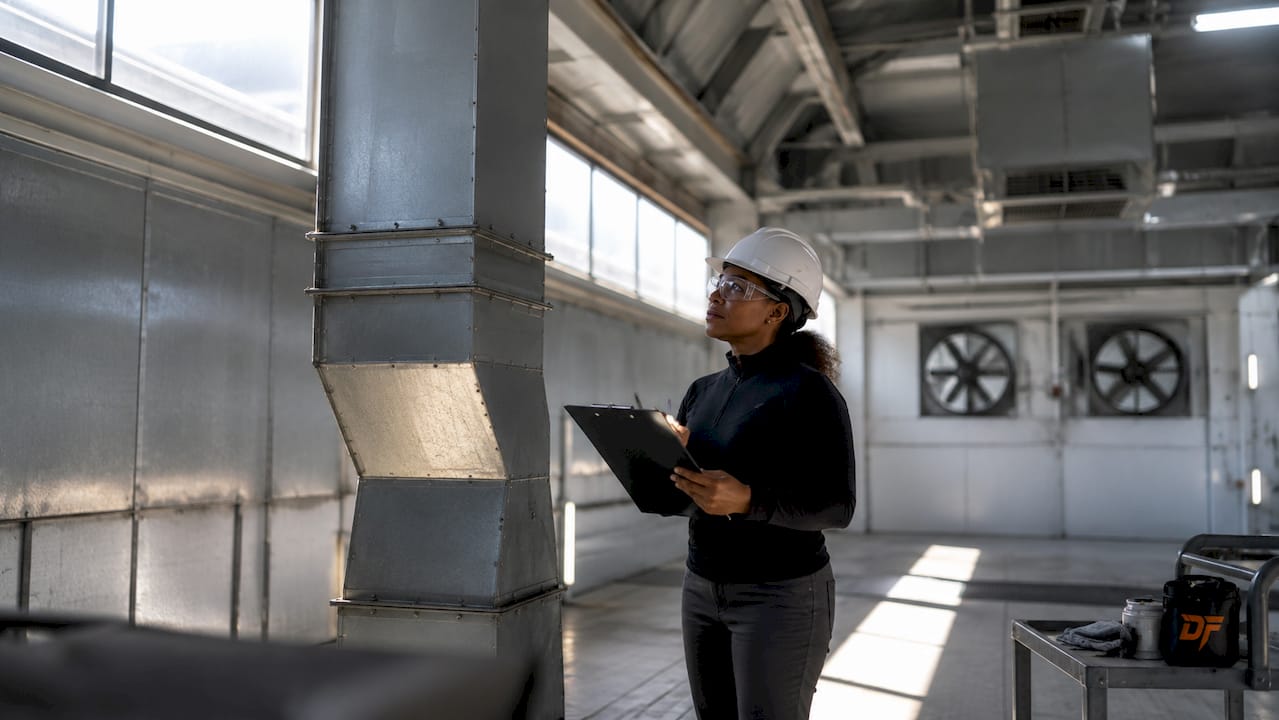

Monitoring motor amperage and static pressure trends gives you early warning of developing problems. A fan drawing progressively higher amperage is working against increasing resistance. A static pressure gauge showing a rising trend indicates filter loading or a developing blockage. Neither condition announces itself with an alarm. Both conditions show up in finish quality before they show up in equipment failure.
The spray booth maintenance guide for sustained ductwork performance includes these practices:
- Inspect duct interiors for overspray buildup at least quarterly in high-production environments
- Check all duct connections and flanges for air leaks during every scheduled maintenance interval
- Replace exhaust filters on a schedule based on static pressure readings, not calendar dates alone
- Verify fan belt tension and bearing condition monthly to prevent performance loss from mechanical wear
- Document static pressure and amperage readings at each inspection to establish a performance baseline
Common mistakes that accelerate ductwork degradation include ignoring the equivalent length contribution of bends when sizing replacement fans, using flexible duct sections in locations that allow kinking, and installing filters without verifying that the filter frame seals completely against the housing. Each of these shortcuts produces a measurable reduction in delivered airflow.
Pro Tip: Install a manometer on both the supply and exhaust sides of your booth and log readings weekly. A pressure differential that shifts more than 10% from your baseline is a signal to inspect filters and check fan performance before finish quality suffers.
The 2026 spray booth maintenance guide recommends integrating duct inspections into the same schedule as filter changes so that both systems are evaluated together. Duct condition and filter condition are interdependent. A clean duct system with a loaded filter performs poorly. A clean filter connected to a partially blocked duct performs just as poorly.
Key Takeaways
Ductwork design directly controls airflow quality, pressure balance, energy consumption, and finish consistency in every industrial paint booth.
| Point | Details |
|---|---|
| Airflow design drives duct layout | Crossdraft, downdraft, and side-draft configurations each require a specific duct routing strategy. |
| Size for total static pressure | Include filter resistance and fitting equivalent lengths, not just booth volume, when selecting fans. |
| Maintain positive pressure | Supply airflow must exceed exhaust by 5–10% to prevent contaminated air from entering the booth. |
| Monitor trends, not just readings | Rising amperage and static pressure signal developing problems before finish quality fails. |
| Elbows add real resistance | Each 90-degree elbow adds 10–20 feet of equivalent pipe length, which increases fan load measurably. |
What I’ve learned from watching ductwork get treated as an afterthought
The most expensive ductwork mistakes I have seen were made at the design stage, not during operation. Facilities that brought in a ventilation specialist after the booth was already built spent significantly more correcting duct routing problems than they would have spent getting the design right from the start. The booth structure constrains every duct decision once it is in place.
The second pattern I have observed consistently is the clean-filter trap. Engineers validate system performance on startup, when filters are new and resistance is at its lowest. The system looks perfect. Six weeks later, finish quality drops and the investigation points to a fan that cannot maintain pressure against loaded filters. The duct system was never sized for real operating conditions.
Treating ductwork as a durable asset changes how you approach both design and maintenance. A well-designed duct system, built to SMACNA and ASHRAE standards with proper aspect ratios and fitting calculations, should serve a facility for the life of the booth. The return on that investment shows up in lower energy costs, fewer finish defects, and reduced fan replacement frequency. The facilities that see ductwork as a commodity item pay for that view repeatedly.
My strongest recommendation is to validate your system under dirty-filter conditions, not clean ones. Run your pressure and amperage checks when filters are due for replacement, not right after you change them. That reading tells you whether your duct design actually works in the real operating environment.
— Dust
How Dustfreefilm supports cleaner air in your spray booth
Ductwork design controls the air. What happens to that air once it reaches the booth walls and floor determines whether your finish stays clean.
Dustfreefilm manufactures multi-layer electrostatic booth wall and floor protection films that prevent overspray and particulate from embedding in booth surfaces and re-entering the air stream. Built to European manufacturing standards and heat-resistant for high-production environments, Dustfreefilm products reduce the contamination load that reaches your exhaust filters, which extends filter life and helps maintain the pressure balance your duct system depends on. Facilities running Dustfreefilm protection alongside a well-designed duct system see fewer finish defects and longer intervals between deep cleans. You can request a quote to find the right configuration for your booth size and production volume.
FAQ
What is the role of ductwork design in paint booths?
Ductwork design controls airflow velocity, direction, and pressure balance inside a paint booth. It determines whether the booth achieves the air change rates and pressure conditions required for safe, contamination-free paint application.
How does ductwork affect paint finish quality?
Poorly designed ducts create uneven airflow velocity and allow booth pressure to drop below positive, which pulls unfiltered air and dust into the spray zone. Both conditions produce surface defects in the finished paint.
What standards govern paint booth ductwork design?
SMACNA and ASHRAE publish the primary standards for industrial duct design, including aspect ratio limits below 4:1 and requirements for smooth transitions that maintain laminar flow through the duct system.
How often should paint booth ductwork be inspected?
High-production facilities should inspect duct interiors for overspray buildup at least quarterly. Static pressure and motor amperage readings should be logged weekly to detect developing problems before they affect finish quality.
Why does fan performance drop over time in a paint booth?
Filter loading increases system static pressure, which reduces the airflow a fan can deliver. Duct design must account for dirty-filter resistance, not just clean-startup conditions, to maintain consistent performance throughout the filter service interval.
