Multiple-Layer Spray Booth Wall Protector
Each layer has a slightly tacky, statically charged surface that acts like a magnet for airborne dust and overspray. Particles are captured before they reach your paint job. Available in White or Transparent options.
Description
Patented spray booth wall and ceiling protection with a sticky surface.
Key Features
- Slightly tacky, statically charged surface acts like a dust magnet for airborne particles and overspray
- Available in White or Transparent (clear) options
- Covers 60m² per standard roll (80m)
- Includes an extra transparent non-sticky protection sheet as the first layer
- Edge design allows overlapping, with no requirement for tape on the seams
- Innovative glue design leaves no adhesive residue on removal

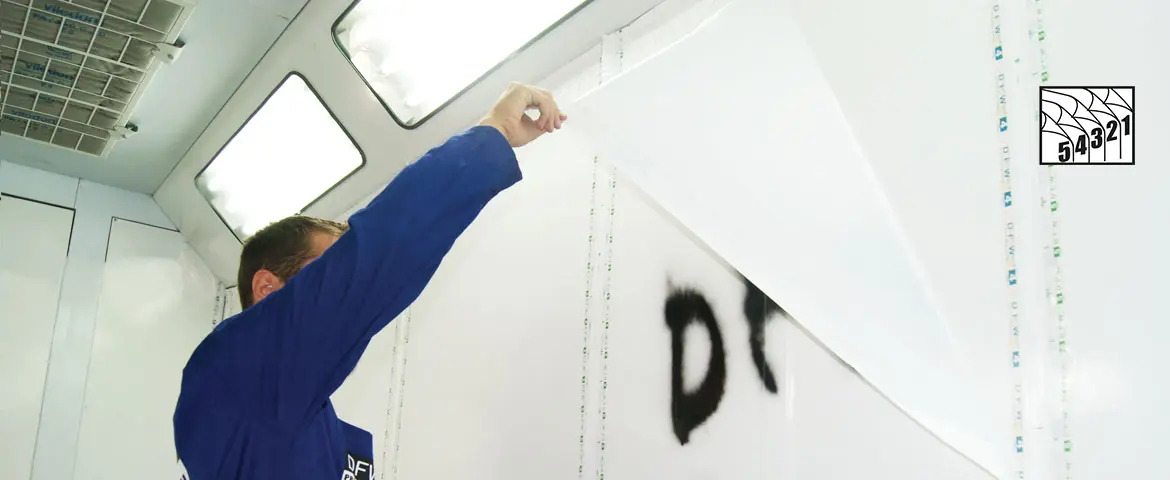

- Know exactly how many layers are remaining with colour-coded layer indicators

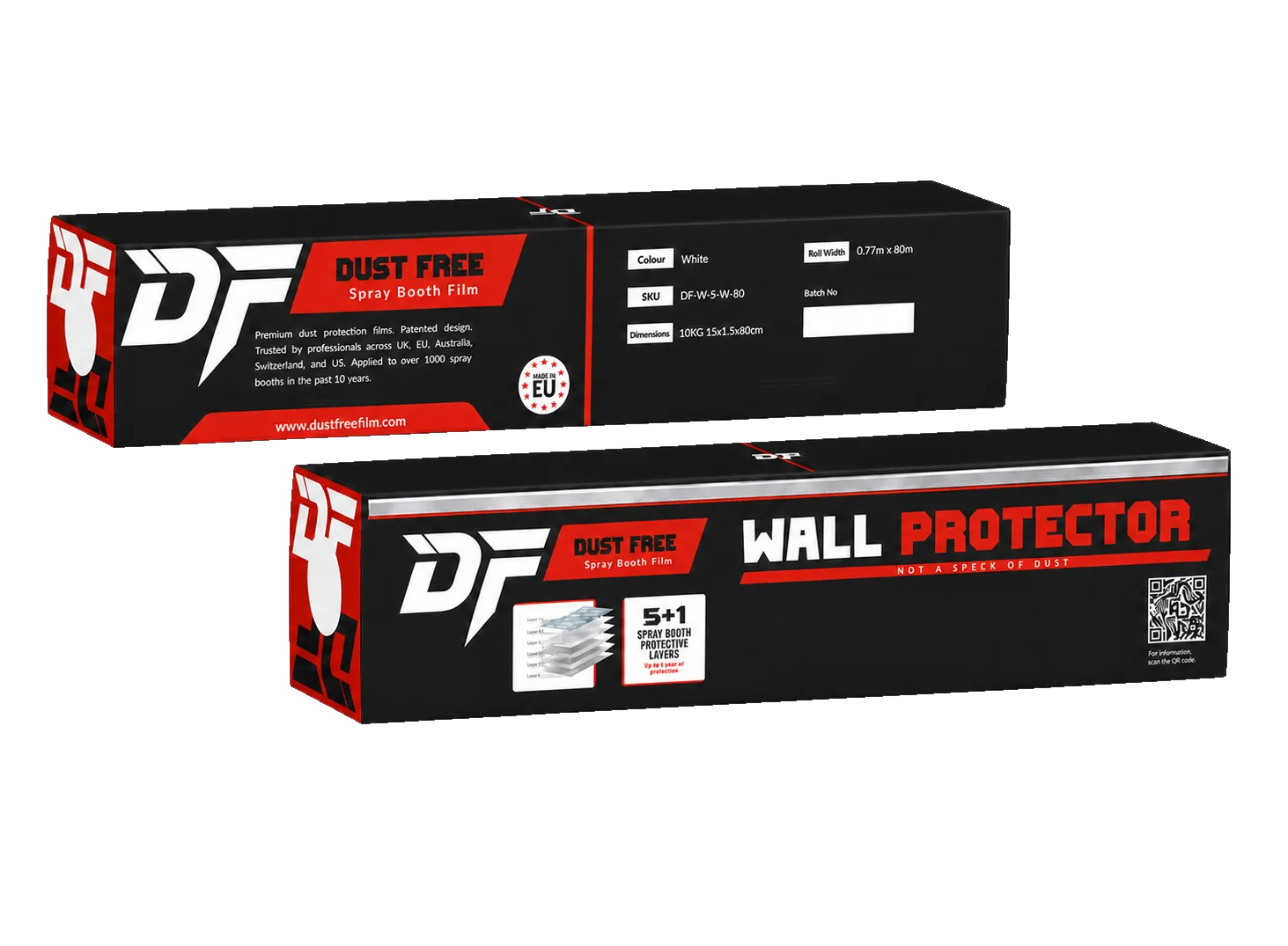

- Patented box design allows installation at 50% less time
- Embedded measuring tape in the rolls allows you to calculate remaining length
- Temperature-resistant material (up to 80°C) insulates and reduces your bake time
- Available in 1/4/5 layer configurations
- Up to 9–12 months protection with 5-layer roll (peel every ~250 cycles or 3 months)
Best For
Technical Specifications
| Product Code | DF-W-1/4/5-W/C |
|---|---|
| Color | White or Transparent (clear) |
| Material | Polypropylene, Polyester |
| Glue | Acrylic based glue |
| Melting Temp | 120 °C |
| Thickness | 112 micron |
| Width | 0.77m |
| Length | 80m |
| Weight | 10kg |
| Technical Specifications | Per roll in dispenser box |
| Box Dimensions | 0.16m x 0.16m x 0.82m |
| Coverage | ~60m² per roll |
| Layers | 1+1, 4+1, or 5+1 sheets (all include transparent non-sticky sheet) |
Tape-Free Application

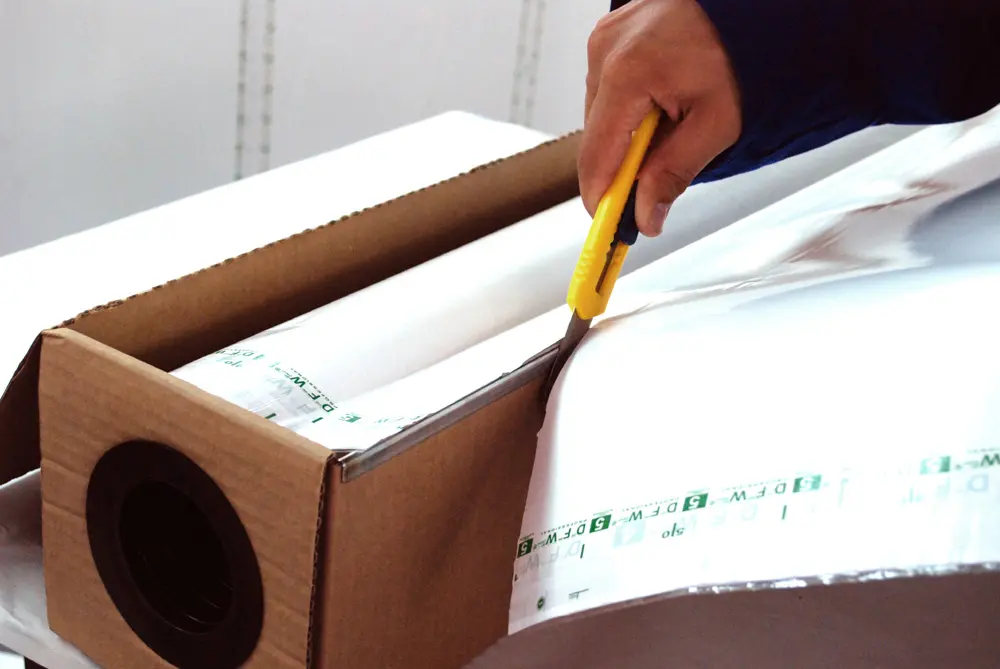

The innovative overlapping self-adhesive design ensures complete coverage and a secure fit, eliminating the need for tape. Our patented dispenser box includes a built-in applicator — no extra accessories required.

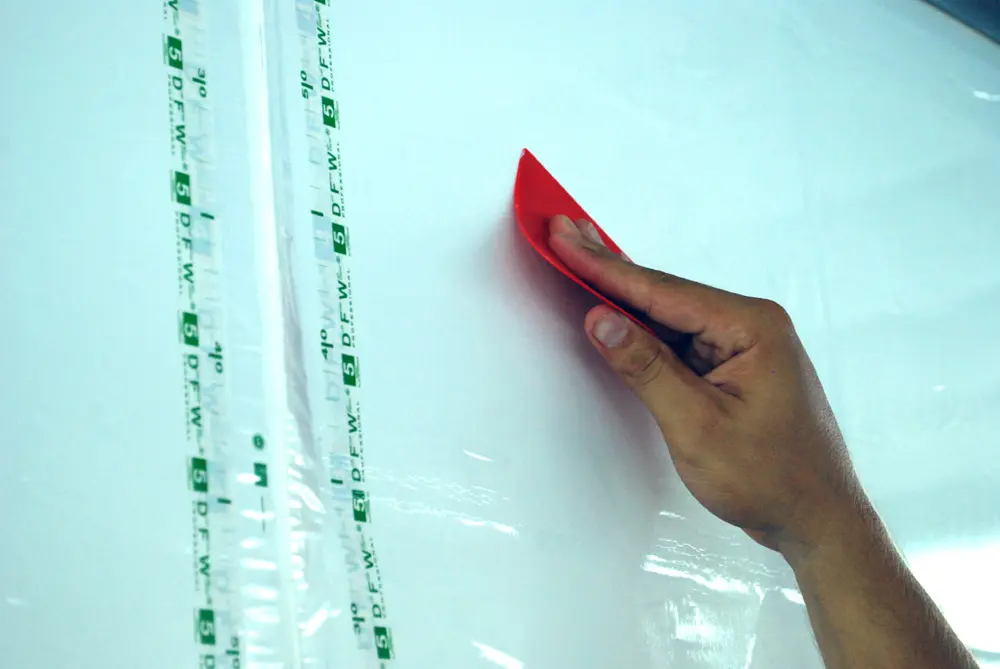

Easy Layer Tracking
Each layer is clearly colour-coded, allowing you to monitor usage at a glance and know exactly how many layers remain. Plus, an embedded measuring tape lets you calculate the remaining roll length at any time.
See It In Action
Application & Storage Guidelines
- To ensure proper, long-lasting adhesion, surfaces should be properly prepared, smooth, clean and dry before application.
- For best performance, use this product within 14 months from the date of manufacture.
- If possible, store unused product in the original carton, or keep covered to avoid contamination from dirt.
- Store under normal working conditions of 21°C and 50% RH.
- Avoid storing material in temperatures above 29°C for long periods of time
- DF Wall Protector has been evaluated for static charging behaviour under normal application conditions. The product is statically charged to a safe level in order to provide optimum performance for airborne paint and dirt particle removal.
- This product has been tested in normal booth conditions and circumstances and does not pose a fire risk.
