How does Dust Free Film Wall Protector capture dust?
Its exposed surface is slightly tacky and statically charged, helping it attract airborne dust particles and overspray before they circulate through the booth.
Multiple-Layer Spray Booth Wall Protector
Product Code: DF-W-5-W/C-80Best Seller
Each layer has a slightly tacky, statically charged surface that acts like a magnet for airborne dust and overspray. Particles are captured before they reach your paint job. Available in White or Transparent options.
Description
Patented spray booth wall and ceiling protection with a sticky surface.
Key Features
- Slightly tacky, statically charged surface acts like a dust magnet for airborne particles and overspray
- Available in White or Transparent (clear) options
- Covers 60m² per standard roll (80m)
- Includes an extra transparent non-sticky protection sheet as the first layer
- Edge design allows overlapping, with no requirement for tape on the seams
- Innovative glue design leaves no adhesive residue on removal
- Know exactly how many layers are remaining with colour-coded layer indicators
- Patented box design allows installation at 50% less time
- Embedded measuring tape in the rolls allows you to calculate remaining length
- Temperature-resistant material (up to 80°C) insulates and reduces your bake time
- 5-layer standard – 4-layer configuration available on request
- Up to 12 months protection with 5-layer roll (peel every ~250 cycles or 3 months)
Best For
Automotive spray boothsMarine painting facilitiesAircraft coating operationsFurniture finishing boothsIndustrial paint applications
Wall-film selection
Is this wall protection film right for your spray booth?
This film is designed for professional spray booth walls, ceilings and light fixtures where airborne dust and overspray control, fast installation and peel-to-refresh maintenance are priorities.
How often is a wall-protection layer replaced?
A layer is typically peeled after about 250 spray cycles or three months. A five-layer roll can provide approximately 9–12 months of protection, depending on booth use.
What size is the wall-protection roll?
The standard roll is 0.77 m wide and 80 m long, covering approximately 60 m². It is available in white or transparent and in 1-, 4- or 5-layer configurations.
Technical Specifications
| Product Code | DF-W-5-W/C-80 |
|---|---|
| Color | White or Transparent (clear) |
| Material | Polypropylene, Polyester |
| Glue | Acrylic based glue |
| Melting Temp | 120 °C |
| Thickness | ~120 micron |
| Width | 0.77m |
| Length | 80m |
| Weight | 10kg |
| Technical Specifications | Per roll in dispenser box |
| Box Dimensions | 0.16m x 0.16m x 0.82m |
| Coverage | ~60m² per roll |
| Layers | 1+1, 4+1, or 5+1 sheets (all include transparent non-sticky sheet) |

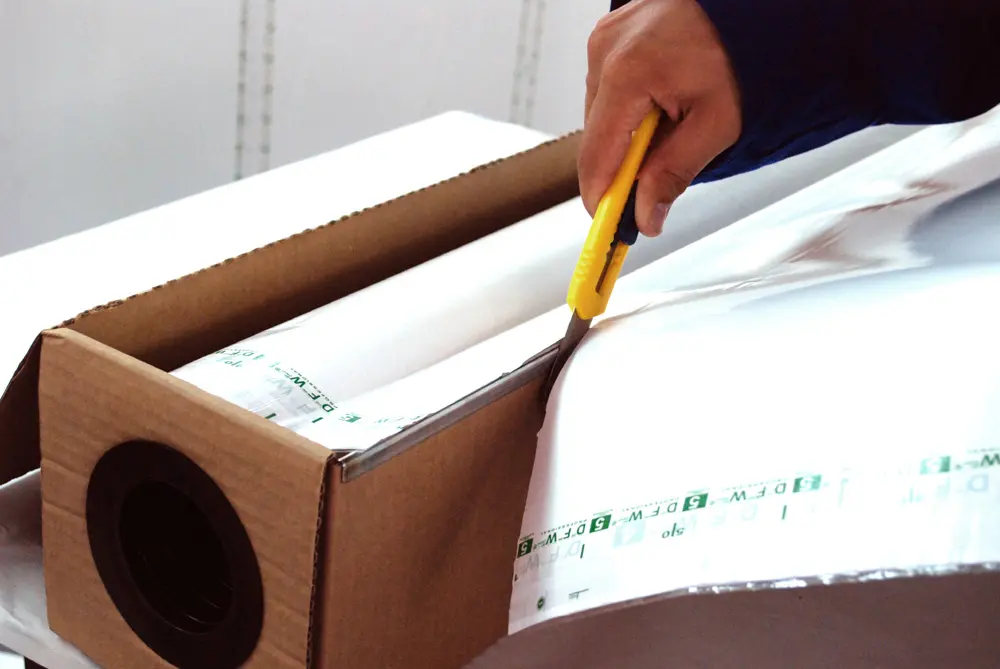

Tape-Free Application
The innovative overlapping self-adhesive design ensures complete coverage and a secure fit, eliminating the need for tape. Our patented dispenser box includes a built-in applicator — no extra accessories required.

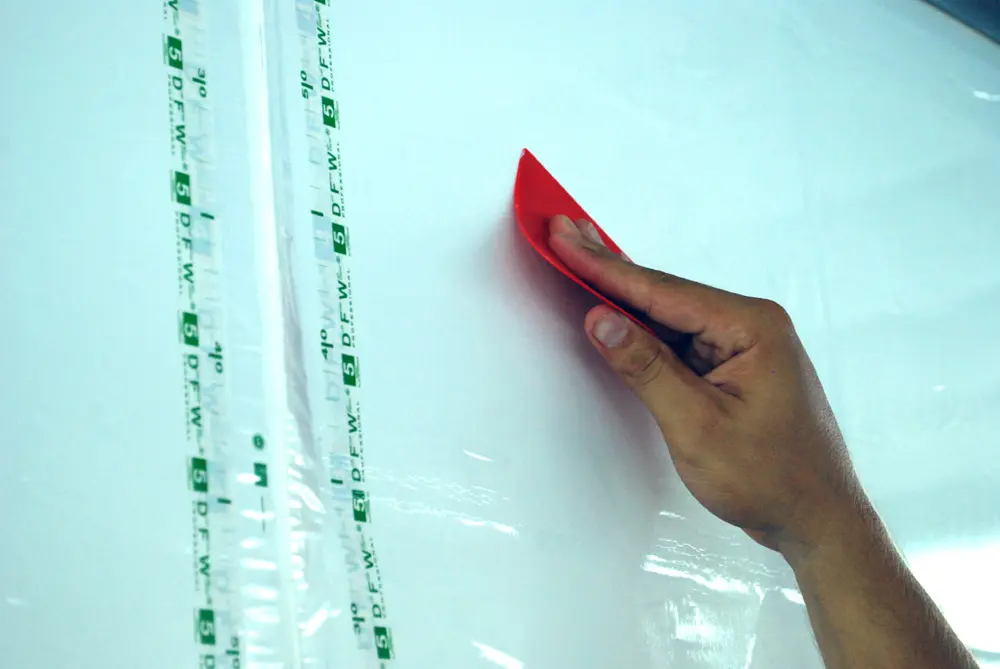

Easy Layer Tracking
Each layer is clearly colour-coded, allowing you to monitor usage at a glance and know exactly how many layers remain. Plus, an embedded measuring tape lets you calculate the remaining roll length at any time.
See It In Action
Application & Storage Guidelines
- To ensure proper, long-lasting adhesion, surfaces should be properly prepared, smooth, clean and dry before application.
- For best performance, use this product within 14 months from the date of manufacture.
- If possible, store unused product in the original carton, or keep covered to avoid contamination from dirt.
- Store under normal working conditions of 21°C and 50% RH.
- Avoid storing material in temperatures above 29°C for long periods of time
- DF Wall Protector has been evaluated for static charging behaviour under normal application conditions. The product is statically charged to a safe level in order to provide optimum performance for airborne paint and dirt particle removal.
- This product has been tested in normal booth conditions and circumstances and does not pose a fire risk.
Documents & Support
Everything you need to evaluate, specify and install Multiple-Layer Spray Booth Wall Protector.
Ready to Protect Your Spray Booth?
Get a custom quote for the Multiple-Layer Spray Booth Wall Protector. Our team will help you find the right configuration for your facility.
